Related Products
| Minimum Order Quantity | 1 Set |
| Size | 12-42 mm |
| Brand | STS |
| Finishing | Polished |
| Material | Stainless Steel |
DOWNLOAD PDF File

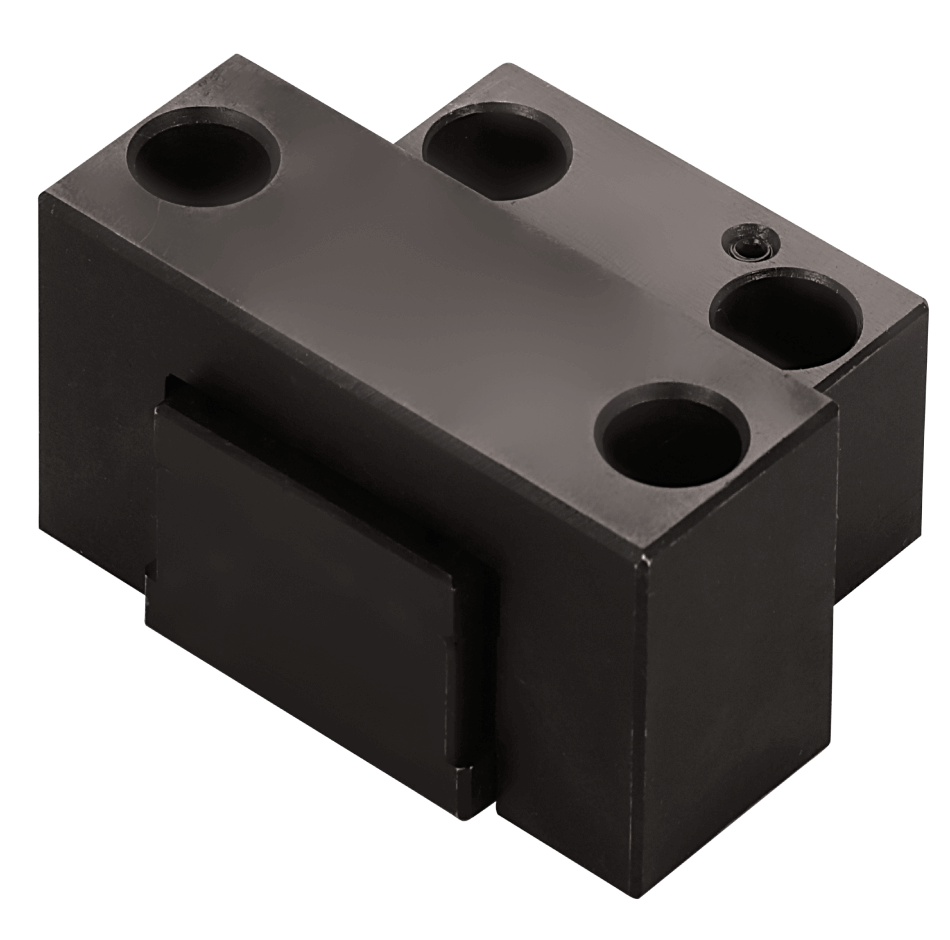

- The tapered interlocks are intended to seat on the taper not on the face of the taper.
- This provided positive alignment without the need of the face of the male and female to touch.
- There could be a gap of 0.000 to 0.005 inch between faces of interlock in mould closed position.
- There is stock allowance at the back of both male and female details to permit fitting at assembly to match specific mould plate thicknesses and or pocket depth.
| Usage | Industrial |
| Color | Red,green,yellow |
| Material | Stainless Steel |
| Finishing | Polished |
| Brand | STS |
| Thickness | 2-5 mm |
- Fluent operation
- High tolerance capacity
- Dimensional accuracy
DOWNLOAD PDF File
Our firm is instrumental in offering an extensive range of Flat Coiled Die Spring. The offered range is made available in a variety of sizes, dimensions and other specifications, so as to meet diverse requirements of clients. These springs are fabricated using leading-edge technology and the latest machinery. In addition to this, the raw material used in manufacturing is factory tested for that much-needed touch of exclusivity to the entire range. Moreover, these springs are checked thoroughly by our quality controllers at the time of procurement.
| Minimum Order Quantity | 10 Piece |
| Material | Steel |
| Size | 6-25 mm |
| Brand | STS |
| Finishing | Polished |
DOWNLOAD PDF File
We are offering Air Ejector Pins Type A, Type B & Type C used to eject plastic products without any hole on its wall and Air vents also which are applicable for thin wall products.
| Minimum Order Quantity | 1 Set |
| Size | 12-42 mm |
| Brand | STS |
| Finishing | Polished |
| Material | Stainless Steel |
DOWNLOAD PDF File
- The tapered interlocks are intended to seat on the taper not on the face of the taper.
- This provided positive alignment without the need of the face of the male and female to touch.
- There could be a gap of 0.000 to 0.005 inch between faces of interlock in mould closed position.
- There is stock allowance at the back of both male and female details to permit fitting at assembly to match specific mould plate thicknesses and or pocket depth.
